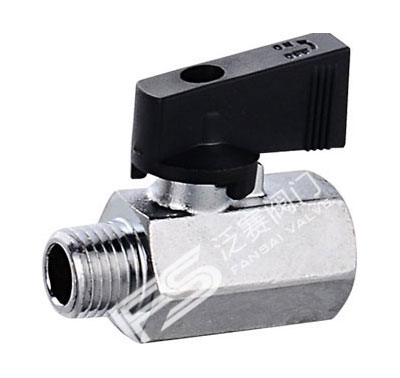

FxM NPT MINI BALL VALVE
| ITEM:FS-A1097 |
| Female X Male Brass Mini Ball Valve |
| Forged Brass Body 1/4" |
| Maximum working pressure:200PSI |
| Temperature range:-20F to 300F(-28℃ to 151℃) |
| Threaded Comply With ANSI B1.20.1 |
| Meets MSS SP-110 Specification |
| Note: Plain or Bronze Coating |
| DIMENSIONS | ||||||||
| Item No. | Size | Inner | Ctn | |||||
| FS-A1097 | 1/4" | 25 | 375 | |||||
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Handle | Aluminium |
| Nut | Steel |
| Stem | Brass |
| Gland | Brass |
| Packing | Teflon®(PTFE) |
| Seats | Teflon®(PTFE) |
| O-ring | NBR |
| Ball | Brass |
| Bonnet | Brass |
| Body | Brass |
