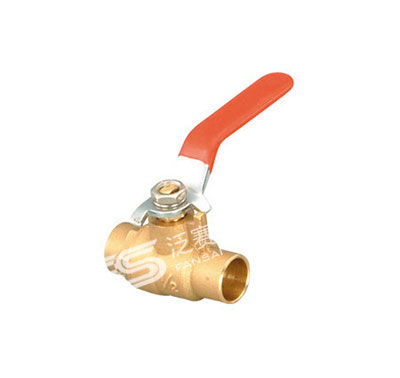

C x C BALL VALVE FULL PORT LIGHT WEIGHT
| ITEM:FS-A1079-1081 |
| C X C Brass Ball Valve Full Port Light Weight |
| Forged Two-Piece Body·Full Port |
| 1/2"-2"(600WOG,150WSP) |
| Temperature range:-20F to 300F(-28℃ to 151℃) |
| Solder Ends Comply With ANSI B16.18 |
| Meets MSS SP-110 Specification |
| Note: Plain or Bronze Coating |
| DIMENSIONS |
| Item No. |
Size |
Inner |
Ctn |
| FS-A1079 |
1/2" |
10 |
100 |
| FS-A1080 |
3/4" |
10 |
80 |
| FS-A1081 |
1" |
6 |
48 |
| MATERIAL LIST |
| PART |
SPECIFICATION |
| Handle |
Iron with Chrome |
| Nut |
Steel |
| Stem |
Brass(ASTM B432-1991-C46500) |
| Gland |
Brass(ASTM B432-1991-C46500) |
| Packing |
Teflon®(PTFE) |
| Seats |
Teflon®(PTFE) |
| O-ring |
NBR |
| Ball |
Brass(ASTM B432-1991-C46500) |
| Bonnet |
Brass(ASTM B432-1991-C46500) |
| Body |
Brass(ASTM B432-1991-C46500) |
