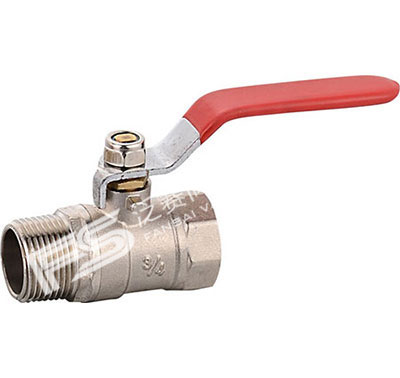

THREAD BALL VALVE FULL PORT
| ITEM:FS-A1077-1078 |
| Female X Male Brass Ball Valve |
| Forged Two-Piece Body·Full Port |
| 1/2"-3/4"(600WOG,150WSP) |
| Temperature range:-20F to 300F(-28℃ to 151℃) |
| Threaded Comply With ANSI B1.20.1 |
| Meets MSS SP-110 Specification |
| Note: Plain or Bronze Coating |
| DIMENSIONS |
| Item No. |
Size |
Inner |
Ctn |
| FS-A1077 |
1/2" |
30 |
180 |
| FS-A1078 |
3/4" |
20 |
120 |
| MATERIAL LIST |
| PART |
SPECIFICATION |
| Handle |
Iron with Chrome |
| Nut |
Steel |
| Stem |
Brass(ASTM B432-1991-C46500) |
| Gland |
Brass(ASTM B432-1991-C46500) |
| Packing |
Teflon®(PTFE) |
| Seats |
Teflon®(PTFE) |
| O-ring |
NBR |
| Ball |
Brass(ASTM B432-1991-C46500) |
| Bonnet |
Brass(ASTM B432-1991-C46500) |
| Body |
Brass(ASTM B432-1991-C46500) |
