F1960 X F1960 BALL VALVE
| ITEM:FS-A1054-1055 | |||

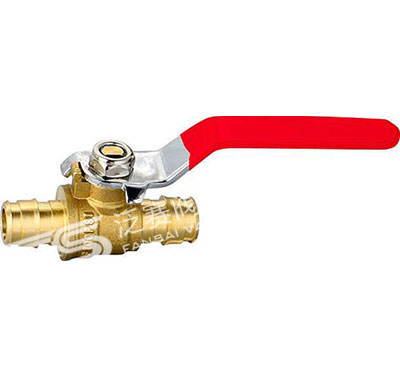

| F1960 PEX Brass Ball Valve | |||
| Forged Two-Piece Body·STD Port | |||
| 1/2"-3/4"(600WOG,150WSP) | |||
| Temperature range:-20F to 300F(-28℃ to 151℃) | |||
| Meets MSS SP-110 Specification | |||
| Note: Plain or Bronze Coating | |||
| DIMENSIONS | ||||||||
| Item No. | Size | A(mm) | B(mm) | C(mm) | Inner | Ctn | ||
| FS-A1054 | 1/2" | 59.5 | 36.5 | 85.5 | 10 | 120 | ||
| FS-A1055 | 3/4" | 79 | 40 | 85.5 | 10 | 80 | ||
| MATERIAL LIST |  |
|
| PART | SPECIFICATION | |
| Handle | Iron with Chrome | |
| Nut | Steel | |
| Stem | Brass(ASTM B432-1991-C46500) | |
| Gland | Brass(ASTM B432-1991-C46500) | |
| Packing | Teflon®(PTFE) | |
| Seats | Teflon®(PTFE) | |
| O-ring | NBR | |
| Ball | Brass(ASTM B432-1991-C46500) | |
| Body & Cap | Brass(ASTM B432-1991-C46500) | |
