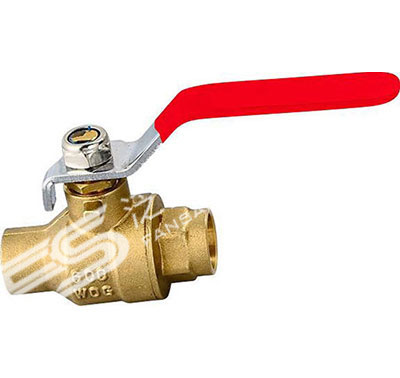

C x C BALL VALVE FULL PORT
| ITEM:FS-A1045-1050 |
| C X C Brass Ball Valve Full Port |
| Forged Two-Piece Body·Full Port |
| 1/2"-2"(600WOG,150WSP) |
| Temperature range:-20F to 300F(-28℃ to 151℃) |
| Solder Ends Comply With ANSI B16.18 |
| Meets MSS SP-110 Specification |
| Note: Plain or Bronze Coating |
| DIMENSIONS |
| Item No. |
Size |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
Inner |
Ctn |
| FS-A1045 |
1/2" |
56.5 |
50.5 |
90 |
15 |
10 |
100 |
| FS-A1046 |
3/4" |
71.3 |
54.7 |
114 |
19 |
10 |
80 |
| FS-A1047 |
1" |
85 |
59 |
114 |
25 |
6 |
48 |
| FS-A1048 |
1-1/4" |
97 |
81.2 |
142 |
32 |
4 |
24 |
| FS-A1049 |
1-1/2" |
107.5 |
86.5 |
142 |
40 |
4 |
16 |
| FS-A1050 |
2" |
|
89.5 |
166 |
50 |
2 |
10 |
| MATERIAL LIST |
 |
| PART |
SPECIFICATION |
| Handle |
Iron with Chrome |
| Nut |
Steel |
| Stem |
Brass(ASTM B432-1991-C46500) |
| Gland |
Brass(ASTM B432-1991-C46500) |
| Packing |
Teflon®(PTFE) |
| Seats |
Teflon®(PTFE) |
| O-ring |
NBR |
| Ball |
Brass(ASTM B432-1991-C46500) |
| Bonnet |
Brass(ASTM B432-1991-C46500) |
| Body |
Brass(ASTM B432-1991-C46500) |
