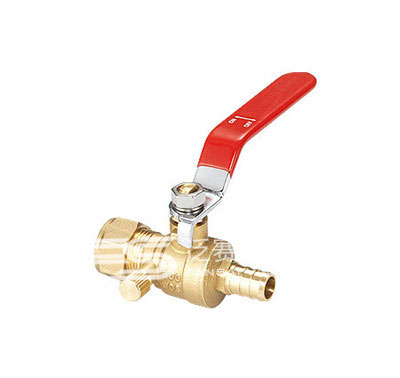

PEX x O.D. BALL VALVE WITH DRAIN FULL PORT
| ITEM:FS-A1030-1032 |
| PEX X O.D. Brass Ball Valve With Drain |
| Forged Two-Piece Body·STD Port |
| 1/2"-1"(600WOG,150WSP) |
| Temperature range:-20F to 300F(-28℃ to 151℃) |
| Meets MSS SP-110 Specification |
| Note: Plain or Bronze Coating |
| DIMENSIONS |
| Item No. |
Size |
Inner |
Ctn |
| FS-A1030 |
1/2" |
10 |
100 |
| FS-A1031 |
3/4" |
6 |
48 |
| FS-A1032 |
1" |
6 |
24 |
| MATERIAL LIST |
| PART |
SPECIFICATION |
| Handle |
Iron with Chrome |
| Nut |
Steel |
| Stem |
Brass(ASTM B432-1991-C46500) |
| Gland |
Brass(ASTM B432-1991-C46500) |
| Packing |
Teflon®(PTFE) |
| Seats |
Teflon®(PTFE) |
| O-ring |
NBR |
| Ball |
Brass(ASTM B432-1991-C46500) |
| Body&Cap |
ASTM B432-1991-C46500 |
| Retaining Ring |
Brass(ASTM B432-1991-C46500) |
| Drain |
Brass(ASTM B432-1991-C46500) |
