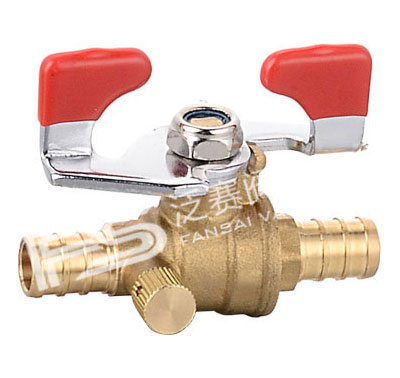

PEX x PEX BALL VALVE WITH DRAIN
| ITEM:FS-A1018-1020 |
| PEX X PEX Brass Ball Valve With Drain |
| Forged Two-Piece Body·STD Port |
| 1/2"-1"(600WOG,150WSP) |
| Temperature range:-20F to 300F(-28℃ to 151℃) |
| Meets MSS SP-110 Specification |
| Note: Plain or Bronze Coating |

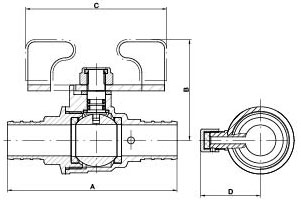

| DIMENSIONS |
| Item No. |
Size |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
Inner |
Ctn |
| FS-A1018 |
1/2" |
69 |
40 |
62 |
23 |
10 |
120 |
| FS-A1019 |
3/4" |
75.5 |
44.2 |
62 |
26.2 |
10 |
100 |
| FS-A1020 |
1" |
90.8 |
48.2 |
62 |
34 |
6 |
48 |
| MATERIAL LIST |
 |
| PART |
SPECIFICATION |
| Handle |
Iron with Chrome |
| Nut |
Steel |
| Stem |
Brass(ASTM B432-1991-C46500) |
| Gland |
Brass(ASTM B432-1991-C46500) |
| Packing |
Teflon®(PTFE) |
| Seats |
Teflon®(PTFE) |
| O-ring |
NBR |
| Ball |
Brass(ASTM B432-1991-C46500) |
| Body & Cap |
Brass(ASTM B432-1991-C46500) |
| Drain |
Brass(ASTM B432-1991-C46500) |
