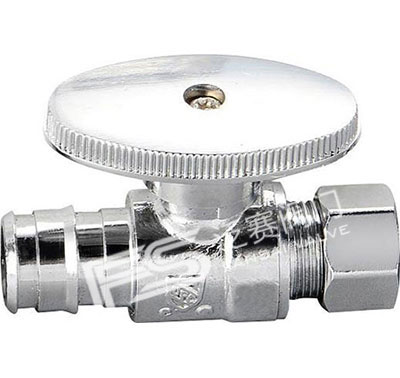

F1986 PEX X OD Q-TURN STRAIGHT VALVE
| ITEM:FS-M017 |
| Wirsbo X O.D. Straight Valve(Quanter turn) |
| Forged Body |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Threaded Comply With ANSI B1.20.1 |
| Meets MSS SP-110 Specification |
| DIMENSIONS |
| Item No. |
Size |
Inner |
Ctn |
| FS-M017 |
1/2WIRSBO*3/8OD |
25 |
200 |
| MATERIAL LIST |
| PART |
SPECIFICATION |
| Handle |
Zinc Alloy or ABS with Chrome Plating |
| Handle Screw |
Steel |
| Stem |
Brass(ASTM B432-1991-C46500) |
| O-ring |
NBR |
| Seats |
Teflon®(PTFE) |
| Ball |
Brass(ASTM B432-1991-C46500) |
| Body |
Brass(ASTM B432-1991-C46500) |
| Nut |
Brass(ASTM B432-1991-C46500) |
| Sleeve |
C46500 |
