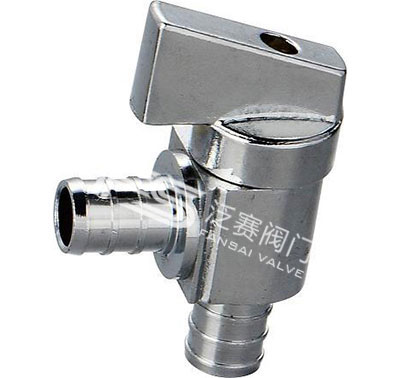

PEX X PEX Q-TURN ANGLE VALVE
| ITEM:FS-E011 |
| PEX X PEX Angle Valve(Quanter turn) |
| Forged Body |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Meets MSS SP-110 Specification |
| Note:Chrome Plating |

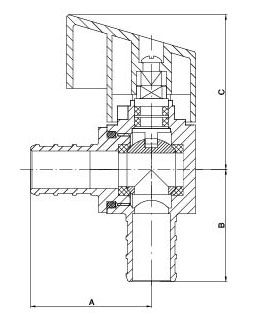

| DIMENSIONS |
| Item No. |
Size |
A(mm) |
B(mm) |
C(mm) |
Inner |
Ctn |
| FS-E011 |
1/2PEX*1/2PEX |
28.5 |
26 |
36.5 |
12 |
144 |
| MATERIAL LIST |
 |
| PART |
SPECIFICATION |
| Handle |
Zinc Alloy or ABS with Chrome Plating |
| Handle Screw |
Steel |
| Stem |
Brass(ASTM B432-1991-C46500) |
| O-ring |
NBR |
| Seats |
Teflon®(PTFE) |
| Ball |
Brass(ASTM B432-1991-C46500) |
| Body |
Brass(ASTM B432-1991-C46500) |
