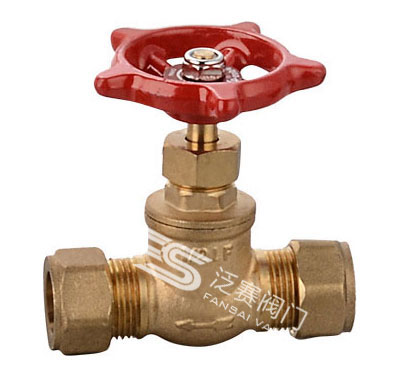

COMP. x COMP. STOP VALVE
| ITEM:FS-B046/047 |
| O.D.X O.D. Brass Stop Valve |
| Forged Body 1/2-3/4" |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Threaded Comply With ANSI B1.20.1 |
| Note:Plain |
| DIMENSIONS | |||
| Item No. | Size | Inner | Ctn |
| FS-B046 | 1/2" | 12 | 72 |
| FS-B047 | 3/4" | 6 | 36 |
| MATERIAL LIST |  |
|
| PART | SPECIFICATION | |
| Handle Screw | C46500 | |
| Hand Wheel | Iron With Painting | |
| Name Plate | Aluminum Alloy | |
| Nut | Steel | |
| O-ring | NBR | |
| Stem | Brass(ASTM B432-1991-C46500) | |
| Disc | NBR | |
| Body | Brass(ASTM B432-1991-C46500) | |
