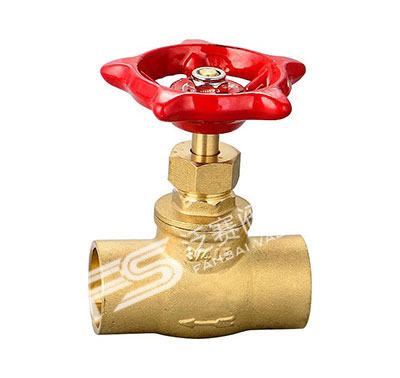

C x C STOP BALL VALVE
| ITEM:FS-B042/043 |
| C X C Brass Stop Valve |
| Forged Body 1/2-3/4" |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Solder Ends Comply With ANSI B16.18 |
| Note:Plain |
| DIMENSIONS | ||||||
| Item No. | Size | A | B | C | Inner | Ctn |
| FS-B042 | 1/2" | 51 | 60 | 55 | 12 | 72 |
| FS-B043 | 3/4" | 59.5 | 60 | 55 | 6 | 36 |
| MATERIAL LIST |  |
|
| PART | SPECIFICATION | |
| Handle Screw | C46500 | |
| Hand Wheel | Iron With Painting | |
| Name Plate | Aluminum Alloy | |
| Nut | Steel | |
| O-ring | NBR | |
| Stem | Brass(ASTM B432-1991-C46500) | |
| Disc | NBR | |
| Body | Brass(ASTM B432-1991-C46500) | |
