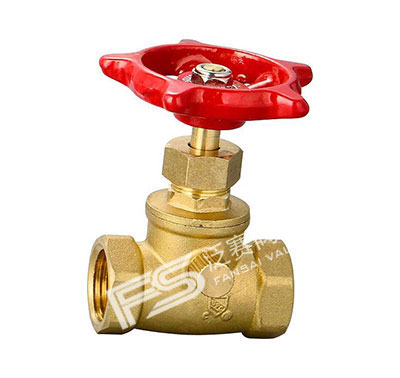

FIP x FIP STOP BALL VALVE WITH DRAIN
| ITEM:FS-B040/041 |
| Female X Female Brass Stop Valve With Drain |
| Forged Body 1/2-3/4" |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Threaded Comply With ANSI B1.20.1 |
| Note:Plain |

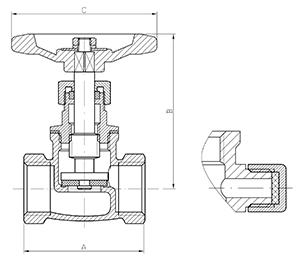

| DIMENSIONS |
| Item No. |
Size |
A(mm) |
B(mm) |
C(mm) |
Inner |
Ctn |
| FS-B040 |
1/2" |
73.5 |
57.5 |
60 |
12 |
72 |
| FS-B041 |
3/4" |
78.8 |
57.5 |
60 |
6 |
36 |
| MATERIAL LIST |
 |
| PART |
SPECIFICATION |
| Handle Screw |
C46500 |
| Hand Wheel |
Iron With Painting |
| Name Plate |
Aluminum Alloy |
| Nut |
Steel |
| O-ring |
NBR |
| Stem |
Brass(ASTM B432-1991-C46500) |
| Disc |
NBR |
| Body |
Brass(ASTM B432-1991-C46500) |
| Drain |
Brass(ASTM B432-1991-C46500) |
