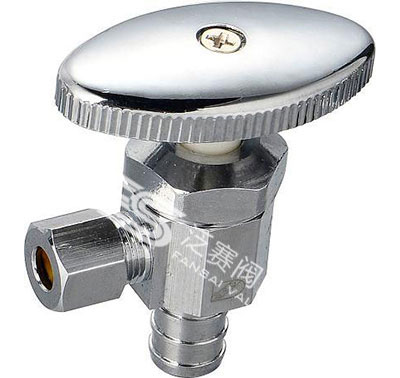

PEX X OD ANGLE SUPPLY STOP
| ITEM:FS-D013/D014 |
| PEX X O.D. Angle Valve(multi-turn) |
| Forged Body |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Threaded Comply With ANSI B1.20.1 |
| Meets MSS SP-110 Specification |
| Note:Chrome Plating |

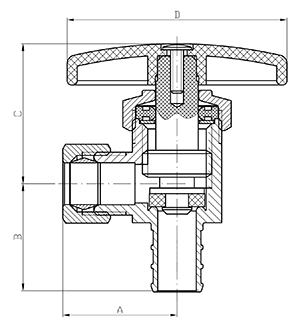

| DIMENSIONS |
| Item No. |
Size |
Inner |
Ctn |
| FS-D013 |
1/2PEX*1/4OD |
25 |
200 |
| FS-D014 |
1/2PEX*3/8OD |
25 |
200 |
| MATERIAL LIST |
 |
| PART |
SPECIFICATION |
| Handle |
Zinc Alloy or ABS with Chrome Plating |
| Handle Screw |
Steel |
| Stem |
Brass(ASTM B432-1991-C46500) |
| O-ring |
NBR |
| Seats |
Teflon®(PTFE) |
| Ball |
Brass(ASTM B432-1991-C46500) |
| Body |
Brass(ASTM B432-1991-C46500) |
| Sleeve |
C46500 |
| Nut |
ASTM B432-1991-C46500 With Chrome Plating |
