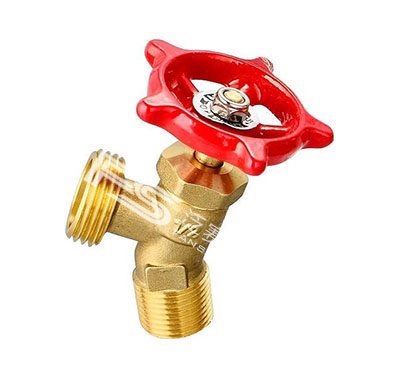

MIP X HOSE BOILER DRAIN ANGLE
| ITEM:FS-B033/034 |
| MIP X HOSE Boiler Drain Multi-Turn Angle Valve |
| Forged Body |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Pipe Threaded Comply With ANSI B1.20.1 |
| Hose Threaded Comply With ASME B1.20.7 |
| Note:Plain |
| DIMENSIONS |
| Item No. |
Size |
A(mm) |
B(mm) |
C(mm) |
Inner |
Ctn |
| FS-B033 |
1/2" |
48 |
57.5 |
60 |
12 |
72 |
| FS-B034 |
3/4" |
55 |
57.5 |
60 |
6 |
36 |
| MATERIAL LIST |
| PART |
SPECIFICATION |
| Handle Screw |
Brass |
| Hand Wheel |
Iron With Painting |
| Name Plate |
Aluminum Alloy |
| Nut |
Steel |
| O-ring |
NBR |
| Stem |
Brass |
| Disc |
NBR |
| Body |
Brass |
