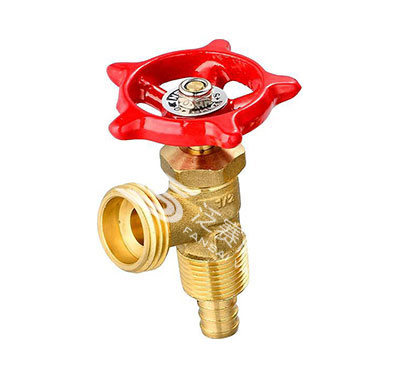

PEX X HOSE BOILER DRAIN
| ITEM:FS-B032 |
| PEX X HOSE Boiler Drain Multi-Turn |
| Forged Body |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Hose Threaded Comply With ASME B1.20.7 |
| Note:Plain |
| DIMENSIONS | |||||||
| Item No. | Size | A(mm) | B(mm) | C(mm) | D(mm) | Inner | Ctn |
| FS-B032 | 1/2PEX 90° | 42.5 | 44 | 30 | 60 | 12 | 72 |
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Handle Screw | Brass |
| Hand Wheel | Iron With Painting |
| Name Plate | Aluminum Alloy |
| Nut | Steel |
| O-ring | NBR |
| Stem | Brass |
| Disc | NBR |
| Body | Brass |
