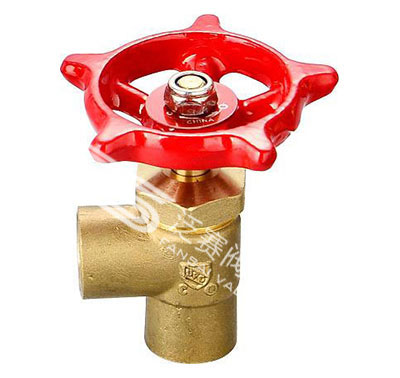

SOLDER x SOLDER BOILER DRAIN
| ITEM:FS-B030/031 |
| C X C Boiler Drain Multi-Turn |
| Forged Body |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Solder Ends Comply With ANSI B16.18 |
| Note:Plain |
| DIMENSIONS | |||||||
| Item No. | Size | A(mm) | B(mm) | C(mm) | D(mm) | Inner | Ctn |
| FS-B030 | 1/2 | 42.5 | 23.5 | 23.5 | 60 | 12 | 72 |
| FS-B031 | 3/4 | / | / | / | / | 12 | 72 |
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Handle Screw | Brass |
| Hand Wheel | Iron With Painting |
| Name Plate | Aluminum Alloy |
| Nut | Steel |
| O-ring | NBR |
| Stem | Brass |
| Disc | NBR |
| Body | Brass |
