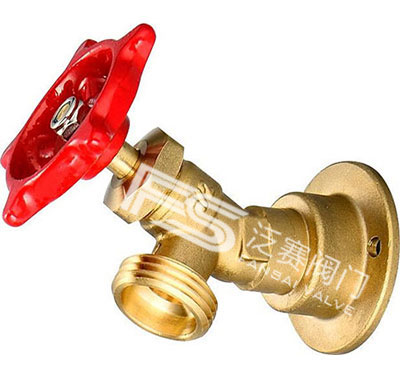

FIP X HOSE SILLCOCK MULTI-TURN
| ITEM:FS-B020 |
| FIP X HOSE Boiler Drain Multi-Turn With Flange |
| Forged Body |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Pipe Threaded Comply With ANSI B1.20.1 |
| Hose Threaded Comply With ASME B1.20.7 |
| Note:Plain |

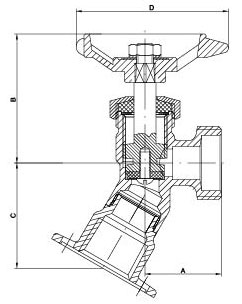

| DIMENSIONS |
| Item No. |
Size |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
Inner |
Ctn |
| FS-B020 |
1/2F*65° |
27.5 |
42.5 |
37.8 |
60 |
12 |
72 |
| MATERIAL LIST |
 |
| PART |
SPECIFICATION |
| Handle Screw |
Brass |
| Hand Wheel |
Iron With Painting |
| Name Plate |
Aluminum Alloy |
| Nut |
Steel |
| O-ring |
NBR |
| Stem |
Brass |
| Disc |
NBR |
| Body |
Brass |
