FIP X HOSE SILLCOCK 1/4 TURN
| ITEM:FS-B018/019 |
| FIP X HOSE Boiler Drain Quarter Turn With Flange |
| Forged Body |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Threaded Comply With ANSI B1.20.1 |
| Threaded Comply With ASME B1.20.7 |
| Meets MSS SP-110 Specification |
| Note:Plain |

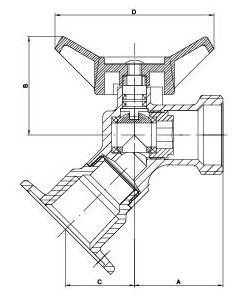

| DIMENSIONS |
| Item No. |
Size |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
Inner |
Ctn |
| FS-B018 |
1/2F*120° |
29.5 |
32.8 |
23 |
53 |
12 |
72 |
| FS-B019 |
3/4F*120° |
29.5 |
32.8 |
22 |
53 |
12 |
72 |
| MATERIAL LIST |
 |
| PART |
SPECIFICATION |
| Handle |
Aluminum Alloy |
| Stem |
Brass |
| O-ring |
NBR |
| Seats |
Teflon®(PTFE) |
| Ball |
Brass |
| Body |
Brass |
| Name Plate |
Aluminum Alloy |
