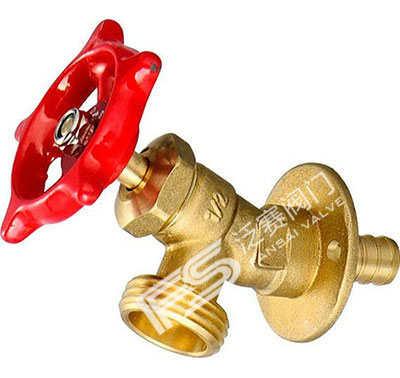

PEX X HOSE SILLCOCK MULTI-TURN
| ITEM:FS-B015 |
| PEX X HOSE Boiler Drain Multi-Turn With Flange |
| Forged Body |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Hose Threaded Comply With ASME B1.20.7 |
| Note:Plain |
| DIMENSIONS | |||||||
| Item No. | Size | A(mm) | B(mm) | C(mm) | D(mm) | Inner | Ctn |
| FS-B015 | 1/2PEX*65° | 27.5 | 42.5 | 45.6 | 60 | 12 | 72 |
| MATERIAL LIST |  |
|
| PART | SPECIFICATION | |
| Handle Screw | Brass | |
| Hand Wheel | Iron With Painting | |
| Name Plate | Aluminum Alloy | |
| Nut | Steel | |
| O-ring | NBR | |
| Stem | Brass | |
| Disc | NBR | |
| Body | Brass | |
