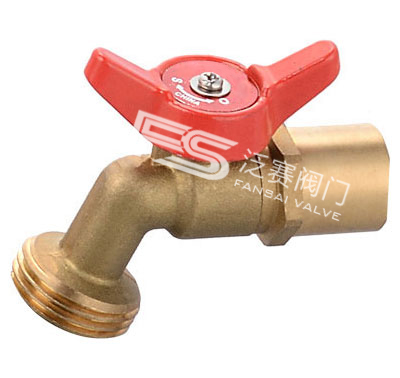

SOLDER X HOSE HOSE BIBBS 1/4 TURN
| ITEM:FS-B010 |
| C X HOSE Boiler Drain Quarter Turn |
| Forged Body |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Threaded Comply With ANSI B1.20.1 |
| Solder Ends Comply With ASME B1.20.7 |
| Note:Plain |
| DIMENSIONS | |||||||
| Item No. | Size | A(mm) | B(mm) | C(mm) | D(mm) | Inner | Ctn |
| FS-B010 | 1/2"C * 3/4"HOSE | / | / | / | / | 25 | 150 |
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Handle | Aluminum Alloy |
| Stem | Brass |
| O-ring | NBR |
| Seats | Teflon®(PTFE) |
| Ball | Brass |
| Body | Brass |
| Name Plate | Aluminum Alloy |
