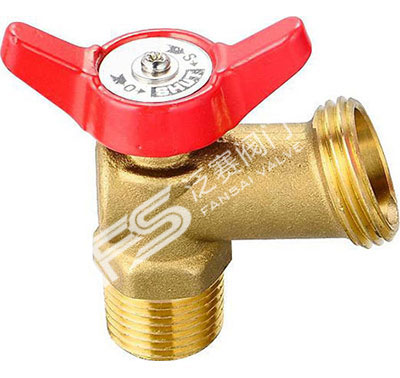

MIP x HOSE BOILER DRAIN 1/4 TURN
| ITEM:FS-B001/002 |
| MIP X HOSE Boiler Drain Quarter Turn |
| Forged Body |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Threaded Comply With ANSI B1.20.1 |
| Threaded Comply With ASME B1.20.7 |
| Meets MSS SP-110 Specification |
| Note:Plain |
| DIMENSIONS |
| Item No. |
Size |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
Inner |
Ctn |
| FS-B001 |
1/2M*3/4HOSE |
31.5 |
32.8 |
37 |
53 |
25 |
150 |
| FS-B002 |
3/4M*3/4HOSE |
34.5 |
32.8 |
37 |
53 |
25 |
150 |
| MATERIAL LIST |
 |
| PART |
SPECIFICATION |
| Handle |
Aluminum Alloy |
| Stem |
Brass |
| O-ring |
NBR |
| Seats |
Teflon®(PTFE) |
| Ball |
Brass |
| Body |
Brass |
| Name Plate |
Aluminum Alloy |
