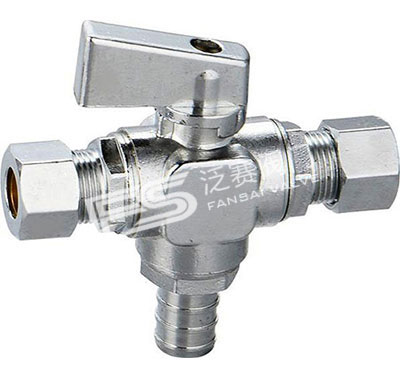

SUPPLY STOP TEE VALVE
| ITEM:FS-C026 |
| O.D.X O.D.X PEX Stop Tee Valve(Quanter turn) |
| Forged Body |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Threaded Comply With ANSI B1.20.1 |
| Meets MSS SP-110 Specification |
| Note:Chrome Plating |
| DIMENSIONS | ||||||||
| Item No. | Size | A(mm) | B(mm) | C(mm) | C(mm) | Inner | Ctn | |
| FS-C026 | 3/8OD*3/8OD*1/2PEX | 36 | 36 | 32 | 36.5 | 10 | 100 | |
| MATERIAL LIST |  |
|
| PART | SPECIFICATION | |
| Handle | Zinc Alloy or ABS with Chrome Plating | |
| Handle Screw | Steel | |
| Stem | Brass(ASTM B432-1991-C46500) | |
| O-ring | NBR | |
| Seats | Teflon®(PTFE) | |
| Ball | Brass(ASTM B432-1991-C46500) | |
| Body | Brass(ASTM B432-1991-C46500) | |
| Sleeve | C46500 | |
| Nut | ASTM B432-1991-C46500 With Chrome Plating | |
