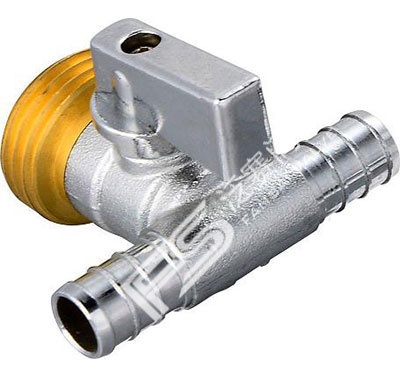

SUPPLY STOP TEE VALVE
| ITEM:FS-C025 |
| PEX X PEX X HOSE Stop Tee Valve(Quanter turn) |
| Forged Body |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Threaded Comply With ANSI B1.20.1 |
| Meets MSS SP-110 Specification |
| Note:Chrome Plating |
| DIMENSIONS | |||||||
| Item No. | Size | A(mm) | B(mm) | C(mm) | D(mm) | Inner | Ctn |
| FS-C025 | 1/2PEX*1/2PEX*3/4Hose | 23 | 14 | 32 | 54 | 25 | 200 |
| MATERIAL LIST |  |
|
| PART | SPECIFICATION | |
| Handle | Zinc Alloy or ABS with Chrome Plating | |
| Handle Screw | Steel | |
| Stem | Brass(ASTM B432-1991-C46500) | |
| O-ring | NBR | |
| Seats | Teflon®(PTFE) | |
| Ball | Brass(ASTM B432-1991-C46500) | |
| Body | Brass(ASTM B432-1991-C46500) | |
