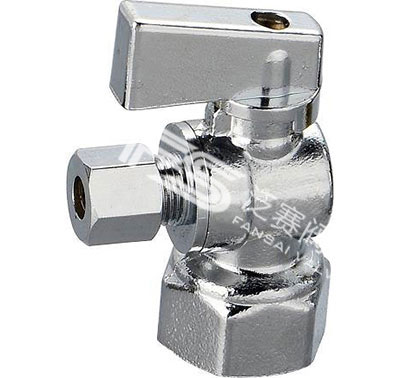

FIP X O.D Q-TURN ANGLE VALVE
| ITEM:FS-C001/002/003 |
| FIP X O.D. Angle Valve(Quanter turn) |
| Forged Body |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Threaded Comply With ANSI B1.20.1 |
| Meets MSS SP-110 Specification |
| Note:Chrome Plating |
| DIMENSIONS |
| Item No. |
Size |
A(mm) |
B(mm) |
C(mm) |
Inner |
Ctn |
| FS-C001 |
1/2F*1/4OD |
27.5 |
27 |
32 |
25 |
200 |
| FS-C002 |
3/8F*3/8OD |
|
|
32 |
25 |
200 |
| FS-C003 |
1/2F*3/8OD |
28.5 |
27 |
32 |
25 |
200 |
| MATERIAL LIST |
 |
| PART |
SPECIFICATION |
| Handle |
Zinc Alloy or ABS with Chrome Plating |
| Handle Screw |
Steel |
| Stem |
Brass(ASTM B432-1991-C46500) |
| O-ring |
NBR |
| Seats |
Teflon®(PTFE) |
| Ball |
Brass(ASTM B432-1991-C46500) |
| Body |
Brass(ASTM B432-1991-C46500) |
| Sleeve |
C46500 |
| Nut |
ASTM B432-1991-C46500 With Chrome Plating |
