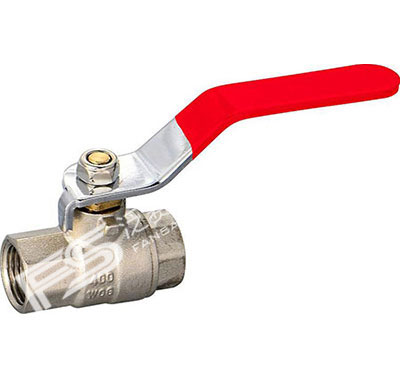

THREAD BALL VALVE FULL PORT
| ITEM:FS-A1057-1065 |
| Thread Brass Ball Valve Full Port |
| Forged Two-Piece Body·Full Port |
| 1/8"-2"(600WOG,150WSP) |
| Temperature range:-20F to 300F(-28℃ to 151℃) |
| Threaded Comply With ANSI B1.20.1 |
| Meets MSS SP-110 Specification |
| Note: Plain or Bronze Coating |
| DIMENSIONS | ||||||||
| Item No. | Size | A(mm) | B(mm) | C(mm) | D(mm) | Inner | Ctn | |
| FS-A1057 | 1/8" | 38.4 | 40.5 | 65 | 8 | 20 | 200 | |
| FS-A1058 | 1/4" | 38.4 | 40.5 | 65 | 8 | 20 | 200 | |
| FS-A1059 | 3/8" | 43.2 | 44.8 | 90 | 10 | 10 | 150 | |
| FS-A1060 | 1/2" | 52.5 | 50.5 | 90 | 15 | 10 | 100 | |
| FS-A1061 | 3/4" | 59.8 | 54.7 | 114 | 19 | 10 | 80 | |
| FS-A1062 | 1" | 71 | 59 | 114 | 25 | 5 | 50 | |
| FS-A1063 | 1-1/4" | 82 | 81.2 | 142 | 32 | 5 | 30 | |
| FS-A1064 | 1-1/2" | 92 | 86.5 | 142 | 40 | 4 | 20 | |
| FS-A1065 | 2" | 104.5 | 89.5 | 166 | 50 | 4 | 16 | |
| MATERIAL LIST |  |
|
| PART | SPECIFICATION | |
| Handle | Iron with Chrome | |
| Nut | Steel | |
| Stem | Brass(ASTM B432-1991-C46500) | |
| Gland | Brass(ASTM B432-1991-C46500) | |
| Packing | Teflon®(PTFE) | |
| Seats | Teflon®(PTFE) | |
| O-ring | NBR | |
| Ball | Brass(ASTM B432-1991-C46500) | |
| Bonnet | Brass(ASTM B432-1991-C46500) | |
| Body | Brass(ASTM B432-1991-C46500) | |
