C x PEX BALL VALVE WITH DRAIN
| ITEM:FS-A1004-1005 |

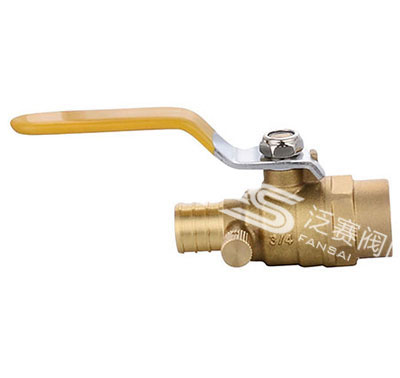

| C X PEX Brass Ball Valve With Drain |
| Forged Two-Piece Body·STD Port |
| 1/2"-1"(600WOG,150WSP) |
| Temperature range:-20F to 300F(-28℃ to 151℃) |
| Solder Ends Comply With ANSI B16.18 |
| Meets MSS SP-110 Specification |
| Note: Plain or Bronze Coating |
| DIMENSIONS | ||||||||
| Item No. | Size | Inner | Ctn | |||||
| FS-A1004 | 1/2" | 10 | 100 | |||||
| FS-A1005 | 3/4" | 10 | 80 | |||||
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Handle | Iron with Chrome |
| Nut | Steel |
| Stem | Brass(ASTM B432-1991-C46500) |
| Gland | Brass(ASTM B432-1991-C46500) |
| Packing | Teflon®(PTFE) |
| Seats | Teflon®(PTFE) |
| O-ring | NBR |
| Ball | Brass(ASTM B432-1991-C46500) |
| Body & Cap | Brass(ASTM B432-1991-C46500) |
| Drain | Brass(ASTM B432-1991-C46500) |
