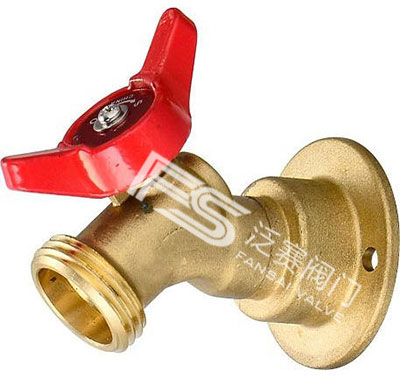

FIP X HOSE SILLCOCK 1/4 TURN
| ITEM:FS-B018/019 |
| FIP X HOSE Boiler Drain Quarter Turn With Flange |
| Forged Body |
| Maximum working pressure:125PSI |
| Temperature range:-10℃ to 95℃ |
| Threaded Comply With ANSI B1.20.1 |
| Threaded Comply With ASME B1.20.7 |
| Meets MSS SP-110 Specification |
| Note:Plain |
| DIMENSIONS | |||||||
| Item No. | Size | A(mm) | B(mm) | C(mm) | D(mm) | Inner | Ctn |
| FS-B018 | 1/2F*120° | 29.5 | 32.8 | 23 | 53 | 12 | 72 |
| FS-B019 | 3/4F*120° | 29.5 | 32.8 | 22 | 53 | 12 | 72 |
| MATERIAL LIST |  |
|
| PART | SPECIFICATION | |
| Handle | Aluminum Alloy | |
| Stem | Brass | |
| O-ring | NBR | |
| Seats | Teflon®(PTFE) | |
| Ball | Brass | |
| Body | Brass | |
| Name Plate | Aluminum Alloy | |
